High Torque Planetary Gearbox Selection Guide: Finding the Right Solution for Your Servo Motor and Robotics Applications

In the dynamic world of industrial automation and robotics, the efficiency and reliability of a system often depend on its core components. The High Torque Planetary Gearbox stands as one such critical element, essential for delivering power and precision in a compact form. This guide is designed to demystify the selection process, helping you navigate the key factors and technical specifications to choose the perfect gearbox for your specific needs. We will cover the fundamental principles of these gearboxes, delve into critical technical parameters, explore specific application scenarios for servo motors and robotics, and finally, discuss when a custom solution is the best path forward.

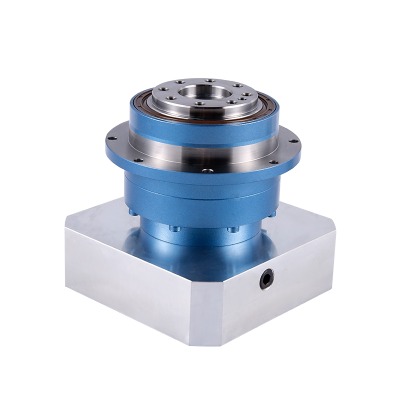

2. Understanding High Torque Planetary Gearboxes

2.1 What is a Planetary Gearbox?

A planetary gearbox, also known as an epicyclic gearbox, is a sophisticated gear system that uses a unique arrangement of gears to achieve high reduction ratios and excellent torque transmission. The system consists of a central sun gear, multiple planet gears that revolve around the sun gear, and a ring gear with internal teeth that encloses the entire assembly. This configuration is often compared to our solar system, with the sun gear at the center and the planet gears orbiting it. This design allows the load to be shared among multiple planet gears, which significantly increases the torque capacity and improves the overall efficiency of the system compared to traditional parallel shaft gearboxes. The compact size of a planetary gearbox, combined with its ability to handle immense torque, makes it a preferred choice in a wide range of industrial applications. While a single-stage planetary gearbox provides a substantial reduction ratio, multiple stages can be stacked to achieve even higher ratios, a common practice for applications requiring very low output speeds and very high torque.

2.2 Why is High Torque So Important?

The term High Torque Planetary Gearbox is not just a marketing phrase; it defines a critical performance characteristic. High torque is the rotational equivalent of linear force. In a gearbox, it allows the system to transmit a large amount of power from a high-speed, low-torque motor to a low-speed, high-torque output. This is crucial for applications that involve moving heavy loads, overcoming significant resistance, or achieving rapid acceleration and deceleration. For a high torque planetary gearbox for servo motor, this capability translates directly to enhanced machine performance. For example, in a robotic arm, the gearbox must provide enough torque to lift heavy objects and maintain position against gravity without excessive motor current. Without a high torque gearbox, the motor would be prone to overheating and premature failure. The compact size of these gearboxes, combined with their exceptional power density, means that engineers can design smaller, lighter, and more efficient machines without compromising on strength and reliability. The importance of high torque cannot be overstated; it is the fundamental parameter that ensures a system can perform its intended function under the most demanding conditions.

3. Key Technical Parameters: How to Choose the Right Gearbox

3.1 The Importance of Low Backlash

Backlash is a critical factor in the performance of a planetary gearbox, especially in precision applications. It is defined as the small amount of rotational play or clearance between the gear teeth. While some backlash is inherent in any gear system, excessive backlash can lead to significant problems. In a low backlash high torque planetary gearbox, the manufacturing tolerances are extremely tight to minimize this play. The consequences of high backlash include inaccurate positioning, vibrations during operation, and premature wear on the gear teeth. For applications like CNC machining, medical devices, and automated guided vehicles (AGVs), every degree of rotational accuracy is crucial. A low backlash gearbox ensures smooth, repeatable motion, which is essential for maintaining the integrity of the manufacturing process or the precision of a robotic movement. To achieve low backlash, manufacturers often use specialized gear-cutting techniques, precision bearings, and advanced assembly processes. For a potential buyer, understanding the importance of low backlash is key to differentiating a high-quality, high-performance gearbox from a lower-end model.

3.2 Torque and Load Capacity

Torque is the single most important specification for a planetary gearbox. It dictates the amount of rotational force the gearbox can produce. When selecting a gearbox, you must consider two primary torque values: rated torque and peak torque. The rated torque is the continuous torque that the gearbox can transmit throughout its service life without overheating or failing. This value is used for sizing the gearbox for normal operating conditions. Peak torque, on the other hand, is the maximum torque the gearbox can handle for a short duration, typically during acceleration, deceleration, or shock loads. Failing to account for peak torque can lead to catastrophic failure. It is also important to consider the axial and radial loads that the output shaft can handle, as these forces can affect the lifespan of the bearings and gears. A gearbox with a high load capacity can better withstand the stresses from heavy or cantilevered loads. Here is a simple comparison of torque types:

3.3 Gear Ratio

The gear ratio is the ratio of the input speed to the output speed. It is a fundamental parameter that directly influences the performance of the entire system. A higher gear ratio will result in a lower output speed but a proportionally higher output torque. For example, a gearbox with a 10:1 ratio will reduce the input speed by a factor of 10 and increase the torque by a factor of 10 (minus efficiency losses). Choosing the right ratio is a crucial trade-off. If your application requires high speed, you will need a lower gear ratio, which in turn means less torque multiplication. Conversely, if you need to move a very heavy load, you will require a high gear ratio to provide the necessary torque, but this will limit your maximum speed. The selection process should start with an analysis of your application's speed and torque requirements. Based on these needs, you can then calculate the necessary gear ratio. It’s also important to consider the number of stages in the gearbox. A single-stage gearbox is simpler and more efficient, but a multi-stage gearbox can achieve much higher ratios in a compact space. The choice between a single-stage or multi-stage design depends on your application's specific requirements for speed, torque, and footprint.

3.4 Dimensions and Mounting

The physical integration of the gearbox into your machine is just as important as its technical specifications. The gearbox's dimensions and mounting configuration must be compatible with your motor and the available space. Manufacturers offer various mounting options, including flange mounts, shaft mounts, and foot mounts. It is critical to confirm that the gearbox's output flange matches the dimensions and bolt pattern of your motor to ensure a secure and rigid connection. The input shaft of the gearbox must also be compatible with the motor's shaft. A mismatched connection can lead to vibrations, misalignment, and premature wear. Additionally, you need to consider the weight and size of the gearbox, especially in applications where weight is a concern, such as in aerospace or portable equipment. While many gearboxes follow standardized dimensions, some applications may require custom-machined flanges or adapters to ensure a perfect fit. Always refer to the manufacturer's technical drawings and specifications before making a purchase. The right physical fit ensures not only a smooth assembly process but also the long-term reliability and stability of your entire drive system.

4. Specific Application Scenarios

4.1 High Torque Planetary Gearboxes for Servo Motors

Servo motors are widely used in industrial automation due to their ability to provide precise control over speed, position, and torque. However, they typically operate at high speeds and low torque. This is where a high torque planetary gearbox for servo motor becomes indispensable. By pairing the servo motor with a gearbox, you can achieve a lower output speed and a significantly higher torque, enabling the motor to drive larger and heavier loads. This combination is common in a wide range of industries. For example, in packaging machinery, the gearbox allows the servo motor to quickly and accurately position products on a conveyor belt. In printing equipment, it ensures consistent and precise paper feeding. In automated assembly lines, it provides the force needed to tighten screws or press components into place with high accuracy. The gearbox also acts as a reducer, allowing the motor to run at its optimal, high-speed range, where it is most efficient and produces the least heat. The low backlash of a precision planetary gearbox is particularly beneficial in these applications, as it ensures that the high precision of the servo motor is not lost during power transmission.

4.2 High Torque Planetary Gearboxes for Robotics

Robotics represents one of the most demanding applications for planetary gearboxes. Robot joints require components that are not only powerful but also lightweight and compact to minimize the overall mass of the arm. The high power density of a high torque planetary gearbox for robotics makes it the perfect choice. The design allows the gearbox to handle immense loads and sudden changes in direction, which are common in robotic movements. Moreover, the low backlash feature is absolutely critical in robotics. Any play or slop in the gearbox would directly translate to inaccurate positioning of the robot's end effector, making it impossible to perform precise tasks like welding, painting, or intricate assembly. The high torsional stiffness of a planetary gearbox also contributes to the robot's overall rigidity and repeatability. In a robotic arm, multiple gearboxes are used at each joint, and their cumulative performance determines the robot's accuracy. For this reason, selecting a high-quality gearbox is an investment in the overall performance and reliability of the robotic system. The gearbox enables the robot to perform complex, repeatable tasks with speed and precision, making it an essential component of modern industrial automation.

5. When to Consider a Custom Solution

While a wide variety of standard gearboxes are available on the market, some applications have unique requirements that cannot be met by off-the-shelf products. In such cases, a custom high torque planetary gearbox is the ideal solution. A custom gearbox is designed and manufactured to meet the exact specifications of your application. This could be due to unique space constraints, a non-standard motor interface, a requirement for a very specific gear ratio, or the need for a gearbox that can operate in extreme environmental conditions, such as high temperatures, vacuum, or corrosive environments. Working with a manufacturer on a custom solution ensures that every aspect of the gearbox—from the materials used to the gear geometry—is optimized for your specific needs. This can lead to significant improvements in efficiency, lifespan, and overall system performance. While the initial investment for a custom gearbox may be higher, the long-term benefits in terms of reliability and reduced maintenance costs often outweigh the initial expense. Here's a comparison to help you decide:

The selection of a high torque planetary gearbox is a critical step in the design of any high-performance system. By understanding the key parameters like torque, backlash, and gear ratio, you can make an informed decision that will significantly impact your system’s reliability and efficiency. Whether you are looking for a standard solution or a custom high torque planetary gearbox, partnering with an expert can ensure you find the perfect match for your needs. A well-chosen gearbox is an investment in the performance, precision, and longevity of your application.
