Planetary Drive — Technology, Systems, Components and Applications

Understanding Planetary Drive Technology and Its Engineering Principles

A planetary drive, also known as a planetary gear system, is a compact and efficient transmission mechanism widely used in electric vehicles (EVs), robotics, heavy machinery, and precision automation. Its unique configuration—consisting of a central sun gear, surrounding planet gears, and an outer ring gear—allows it to achieve high torque density, smooth power transfer, and excellent load distribution.

Engineering Principles

• Torque Distribution: Multiple planet gears share the load, reducing stress on each gear tooth and increasing overall durability.
• Compactness: The coaxial design means input and output shafts are aligned, saving space in applications where installation volume is limited.
• Efficiency: With proper lubrication and precision manufacturing, efficiency can reach over 95%.
• Gear Ratios: Achieved by varying the number of teeth in the sun, planet, and ring gears, enabling versatile speed and torque conversion.
• Backlash Control: Precision machining reduces backlash, which is crucial for robotic motion control and CNC equipment.

Typical Parameter Comparison for Planetary Drive Systems

This engineering configuration enables planetary drives to excel in applications demanding high torque, precision motion, and space efficiency, making them a preferred choice for advanced mechanical systems.

Planetary Drive Systems: High-Precision Solutions for EVs, Robotics & Heavy Industry

Planetary drive systems are engineered to deliver exceptional accuracy, torque output, and space efficiency, making them highly suitable for applications where precision and reliability are critical. Their unique planetary gear arrangement ensures balanced load distribution, minimal backlash, and smooth motion—qualities essential for electric vehicles (EVs), robotic systems, and heavy industrial machinery.

Applications in Electric Vehicles (EVs)

• Traction Motors: Planetary drives help transfer motor torque efficiently to the wheels, optimizing acceleration and range.
• Powertrain Integration: Compact design fits within limited chassis space, enabling lightweight and high-torque solutions.
• Regenerative Braking: High efficiency supports effective energy recovery systems.

Applications in Robotics

• Articulated Arms: Low-backlash planetary drives allow precise positioning in robotic joints.
• Mobile Platforms: Compact size and high torque enable agile and responsive movements.
• Automation Systems: Consistent motion control ensures high repeatability in assembly lines.

Applications in Heavy Industry

• Material Handling: Handles large loads in cranes, conveyors, and mining machinery.
• Construction Equipment: High torque density supports demanding applications like excavators and drilling rigs.
• Industrial Presses: Provides smooth, controlled movement under extreme loads.

Typical Parameter Comparison for High-Precision Planetary Drive Systems

These systems are built for durability, precision, and adaptability. By tailoring parameters such as gear ratio, backlash, and torque capacity, engineers can configure planetary drive systems to meet the specific performance demands of each industry.

Key Components and Design Features of Modern Planetary Drive Gearboxes

Modern planetary drive gearboxes are engineered for high torque transmission, precise motion control, and compact integration. They achieve these capabilities through a combination of well-designed components and advanced manufacturing techniques.

Core Components

1. Sun Gear – Central gear connected to the input shaft; initiates torque transfer to the planet gears.
2. Planet Gears – Multiple gears that orbit the sun gear; share the load to improve torque capacity and durability.
3. Ring Gear – Outer gear with internal teeth that mesh with the planet gears; provides structural stability.
4. Planet Carrier – Holds planet gears in position and transmits torque to the output shaft.
5. Bearings – Reduce friction and support axial/radial loads for smoother operation.
6. Housing – Encases the gearbox, ensuring alignment and protection against contaminants.
7. Seals & Lubrication System – Maintain lubrication, minimize wear, and extend operational life.

Design Features of Modern Planetary Drive Gearboxes

• High Torque Density – Compact design delivers high torque relative to size.
• Low Backlash – Achieved through precision machining, essential for robotics and CNC applications.
• Modular Construction – Allows stacking stages for higher gear ratios without sacrificing efficiency.
• Enhanced Load Distribution – Multiple planet gears share torque evenly, reducing gear tooth stress.
• High Efficiency – Precision gear profiles and optimized lubrication minimize energy loss.
• Noise Reduction – Helical or specially cut gears reduce operational noise.
• Material Optimization – Use of hardened steel, surface treatments, and advanced composites for strength and wear resistance.

Typical Parameter Comparison of Planetary Drive Gearbox Configurations

By carefully selecting the number of stages, gear tooth profile, and materials, engineers can optimize planetary drive gearboxes for specific speed, torque, and precision requirements, making them versatile for EVs, robotics, and heavy industry applications.

Planetary Drive Applications in Robotics, Heavy Equipment, and Industrial Automation

Planetary drive systems are widely adopted in robotics, heavy machinery, and industrial automation due to their high torque density, compact size, and precision control. By leveraging advanced manufacturing and design techniques, they can meet the demands of dynamic motion, high load capacity, and long operational lifespans.

Applications in Robotics

• Robotic Arms – Low-backlash planetary drives allow precise, repeatable positioning, essential for assembly, welding, and inspection tasks.
• Mobile Robotics – High torque in a compact design enables autonomous guided vehicles (AGVs) and mobile platforms to operate smoothly in constrained environments.
• Precision Actuators – Used in joints and end effectors to ensure fine motion control.

Applications in Heavy Equipment

• Construction Machinery – Supports lifting, rotating, and driving functions under heavy loads with high reliability.
• Mining Equipment – Delivers sustained torque output in harsh conditions, ensuring minimal downtime.
• Agricultural Machinery – Provides efficient power transmission for large-scale farming operations.

Applications in Industrial Automation

• Conveyor Systems – Ensures stable motion for material handling with high load-bearing capability.
• Packaging Machines – Maintains synchronization for high-speed, precise packaging lines.
• CNC Equipment – Enables smooth, accurate positioning for cutting, milling, and shaping operations.

Typical Parameter Comparison by Application Field

Technical and Regional Advantage of BEITTO

BEITTO specializes in high precision planetary reducers, integrating Japanese electromechanical R&D and meticulous production processes. By applying leading design and development technology, BEITTO continuously optimizes and upgrades planetary drive structures to enhance performance and extend service life.

Located in Pinghu City, Zhejiang Province, within the National Economic and Technological Development Zone, BEITTO benefits from a unique industrial ecosystem. The area hosts the National (Jiaxing) Electromechanical Components Industrial Park and the National Torch Plan Pinghu Optical and Mechanical Industrial Base. Geographically, Pinghu sits at the heart of the Yangtze River Delta, neighboring Shanghai to the east and Hangzhou Bay to the south, offering strategic access to China’s most dynamic economic region. This advantageous location supports BEITTO’s integration of global technology resources with localized precision manufacturing capabilities, making its planetary drive solutions suitable for robotics, heavy equipment, and advanced automation systems.

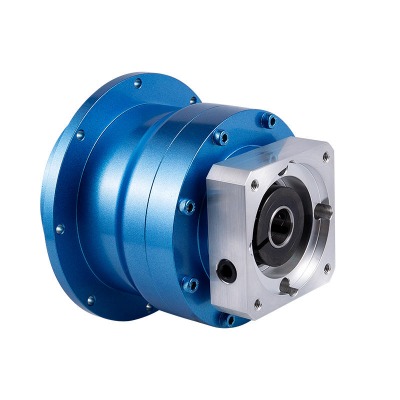

Low Noise Durable Servo Motor Speed Planetary Reducer AHT series
