The Ultimate Guide to Right-Angle Gearbox Reducers: Selection, Applications, and Advantages

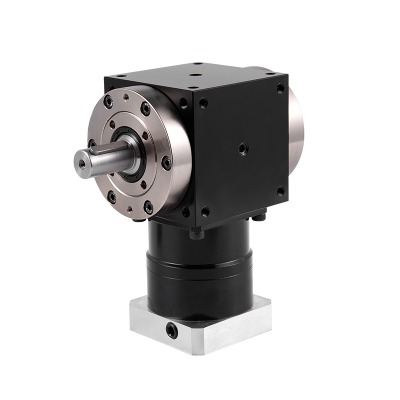

Understanding the Fundamentals of Right-Angle Gearbox Reducers

At the heart of countless mechanical systems lies a crucial component responsible for transmitting power and altering its direction: the right-angle gearbox reducer. This ingenious device serves a dual purpose. Primarily, it changes the direction of rotational power by 90 degrees, a necessity in applications with spatial constraints where input and output shafts cannot be aligned linearly. Secondly, and just as importantly, it reduces the input speed from a motor (e.g., an electric motor) to a more suitable, higher-torque, lower-speed output for the driven equipment. This combination of directional change and speed reduction makes it an indispensable element in a vast array of industrial, automotive, and consumer applications. The fundamental principle involves a set of gears—most commonly bevel or worm gears—mounted within a housing at a perpendicular angle to each other, efficiently transferring motion and force.

Core Components and Construction

The efficiency and durability of a right-angle gearbox reducer are dictated by its internal components and their quality. The housing, typically constructed from cast iron, aluminum, or hardened steel, serves as a rigid structure that precisely aligns the gears and protects them from external contaminants. It also acts as a reservoir for lubricant, which is vital for reducing friction, dissipating heat, and preventing premature wear. Inside, the gears are the heart of the system. The choice of gear type significantly influences the reducer's performance characteristics.

• Bevel Gears: These feature conical-shaped teeth and are used in pairs. They are known for their high efficiency and ability to handle significant loads, but they can be noisier than other types and require precise alignment.
• Worm Gears: This setup consists of a threaded worm screw that meshes with a worm wheel. The primary advantage is the high reduction ratio achievable in a single stage and the inherent self-locking capability (preventing back-driving), though often at the cost of lower efficiency due to higher sliding friction.
• Hypoid Gears: A special variant of spiral bevel gears where the axes do not intersect. This design allows for more teeth to be in contact simultaneously, resulting in smoother, quieter operation and higher torque capacity, often found in high-performance automotive differentials.

Other critical components include seals and bearings. High-quality seals prevent lubricant leakage and block the ingress of dust, water, and other abrasive particles. Bearings support the rotating shafts, maintaining alignment and absorbing radial and axial loads, which directly impacts the unit's lifespan and noise level.

The Working Principle: How Motion is Transformed

The operation of a right-angle gearbox reducer is a elegant demonstration of mechanical advantage. Rotational power is applied to the input shaft. This shaft is connected to the driving gear (e.g., the worm or the pinion bevel gear). As this gear rotates, its teeth engage with the teeth of the driven gear (the worm wheel or the crown bevel gear), which is mounted on the output shaft. The 90-degree angle between the shafts is achieved by the specific orientation of these gears. Simultaneously, the speed reduction and torque multiplication occur due to the gear ratio—the ratio between the number of teeth on the driven gear to the number of teeth on the driving gear. For instance, if a driving gear with 10 teeth meshes with a driven gear with 30 teeth, the gear ratio is 3:1. This means the output shaft will rotate at one-third the speed of the input shaft but with approximately three times the torque (minus efficiency losses). This transformation is critical for matching the high-speed, low-torque output of common prime movers like electric motors to the low-speed, high-torque requirements of machines like conveyors, mixers, or winches.

Key Advantages of Implementing Right-Angle Reducers in Machinery

The decision to utilize a right-angle gearbox reducer is driven by a compelling set of advantages that solve fundamental engineering challenges. The most obvious benefit is spatial efficiency. By redirecting the power flow, these reducers allow for more compact and optimized machine designs, fitting into tight spaces where in-line reducers would be impossible. This is particularly valuable in complex systems like automated packaging lines or within the confined compartments of agricultural machinery. Furthermore, they consolidate functionality. Instead of requiring multiple components to first reduce speed and then change direction, a single right-angle unit accomplishes both tasks, simplifying the drive train, reducing the number of parts, and minimizing potential points of failure.

Another significant advantage is the versatility in mounting positions. Many right-angle gearbox designs offer multiple mounting options (foot-mounted, flange-mounted, or shaft-mounted), providing engineers with flexibility during the design and installation phases. This adaptability ensures the reducer can be integrated seamlessly into both new and existing equipment. From a performance perspective, certain types, especially worm gear reducers, offer a valuable non-reversible or self-locking feature. This means torque applied to the output shaft cannot back-drive the input shaft, acting as a built-in braking mechanism for applications like hoists, lifts, and conveyors on inclines, enhancing safety and control. Finally, modern right-angle reducers are engineered for high efficiency and durability. Advanced manufacturing techniques, high-quality alloy steels, and optimized tooth profiles minimize power loss through friction and ensure the unit can withstand heavy shock loads and operate reliably for thousands of hours with minimal maintenance.

Selecting the Best Right-Angle Gearbox for Your Specific Needs

Choosing the optimal right-angle gearbox reducer is a critical process that directly impacts the performance, longevity, and cost-effectiveness of your application. A poor selection can lead to premature failure, inefficient operation, and costly downtime. The process involves a careful evaluation of several key parameters to ensure the reducer is perfectly matched to its intended duty.

Critical Performance Parameters to Evaluate

Before even considering types or models, you must first define the operational demands of your system.

• Input Speed (RPM) and Power (HP/kW): The rotational speed and power rating of your prime mover (motor) are starting points. The reducer must be rated to handle the input horsepower without overheating.
• Required Output Speed and Torque: Determine the desired output speed (RPM) and the torque (Nm or lb-ft) needed to drive the load. This will dictate the necessary reduction ratio (Input RPM / Output RPM).
• Duty Cycle: Will the reducer run continuously, intermittently, or with frequent starts/stops? Shock loads (sudden, intense torque spikes) must also be considered, as they require a reducer with a higher service factor.
• Overhung Load and Thrust Load: These are forces applied perpendicularly (radial load) or parallel (axial load) to the shaft. Exceeding the reducer's rated load capacity can quickly damage bearings and seals.

Beyond these, the operating environment is crucial. Will the reducer be exposed to extreme temperatures, corrosive chemicals, excessive moisture, or abrasive dust? These conditions dictate requirements for special seals, coatings, housing materials, and lubricants.

Comparing Bevel Gear vs. Worm Gear Reducers

The choice between the two most common types of right-angle reducers is a fundamental one, hinging on the trade-off between efficiency and ratio. The following comparison outlines their key differences:

Bevel gear reducers generally operate at higher efficiencies (95-98% per stage) compared to worm gear reducers. This is because their action involves more rolling contact and less sliding friction. In contrast, a single-stage worm gear reducer typically offers an efficiency range of 50-90%, which decreases as the reduction ratio increases. However, worm gear reducers excel in achieving high reduction ratios (5:1 to 70:1) in a single, compact stage, whereas bevel gears are often limited to lower ratios (1:1 to 6:1) in a single stage. For higher ratios, bevel gears must be combined with parallel shaft stages, creating a bevel-helical reducer, which increases size and cost. Furthermore, worm gear setups often provide the beneficial self-locking feature, which is generally not a characteristic of bevel gears. Finally, bevel gear reducers, especially straight-tooth designs, can be louder, while worm gear reducers typically run more quietly.

Therefore, the best right-angle gearbox for high-torque applications that also demand high efficiency would often be a bevel-helical design. For applications prioritizing a high reduction ratio in a compact footprint and where self-locking is desired, a worm gear reducer is often the ideal and more economical choice.

Exploring the Diverse Applications Across Industries

The unique ability to change direction and reduce speed makes the right-angle gearbox reducer a ubiquitous component across a staggering range of industries. In manufacturing and material handling, they are the driving force behind conveyor systems, palletizers, and automated guided vehicles (AGVs), providing the necessary torque to move heavy loads and fitting perfectly into the corner drives of conveyor lines. The food and beverage industry relies on stainless steel right-angle reducers for mixers, agitators, and bottling equipment, where hygiene, corrosion resistance, and wash-down capability are paramount. In renewable energy, these reducers are crucial in solar tracking systems, adjusting the angle of panels throughout the day to follow the sun.

The mining and construction sectors depend on extremely rugged and durable right-angle reducers to power equipment like crushers, screens, and winches, which are subject to immense shock loads and abrasive dust. A specific and critical application is finding durable right-angle gearboxes for agricultural machinery such as tractors, combines, and seeders. These machines require reducers that can withstand not only high torque but also exposure to mud, dust, and extreme weather conditions. Furthermore, the automotive industry uses them in differentials and power take-off (PTO) units. Even everyday consumer products, from powerful hand drills to garage door openers, utilize compact right-angle reducers to deliver high torque in a confined space. This incredible versatility underscores their fundamental role in modern mechanics.

Ensuring Longevity: Maintenance and Troubleshooting Tips

Proper maintenance is the single most important factor in maximizing the service life and reliability of a right-angle gearbox reducer. A well-maintained unit can operate efficiently for years, while neglect can lead to catastrophic failure and unplanned downtime. The cornerstone of maintenance is lubrication. Using the correct type and grade of lubricant, maintained at the proper level, is non-negotiable. The oil or grease reduces wear, dissipates heat, and protects against corrosion. It is essential to follow the manufacturer's recommendations for the initial lubricant type and the intervals for oil changes or regreasing. For harsh environments or continuous operation, these intervals may need to be shortened. Regularly check for lubricant leaks, which are often indicated by oil accumulation around seals or the housing.

Common Issues and Diagnostic Steps

Even with good maintenance, issues can arise. Early diagnosis is key to preventing minor problems from becoming major repairs.

• Overheating: This is often caused by inadequate lubrication (low oil level, wrong lubricant type), overloading, or excessive ambient temperature. Check the load and lubricant condition first.
• Unusual Noise (Whining, Grinding, Knocking): Excessive noise typically indicates a problem with the gears or bearings. Whining can point to misalignment or wear, while grinding often suggests severe gear tooth damage. Knocking may be a sign of damaged bearings or excessive backlash.
• Vibration: Excessive vibration usually results from misalignment between the reducer and the driven/driving units, worn bearings, an unbalanced load, or a damaged gear tooth.
• Leakage: Oil leaks are most commonly traced to failed seals. Identify the leak source and replace the seal promptly to prevent lubricant loss and contamination.

Establishing a predictive maintenance program, including regular vibration analysis and thermography, can help detect these issues early. For those wondering about how to install a right-angle gear reducer properly, the process always begins with ensuring a firm, flat mounting surface to prevent housing distortion. Shafts must be aligned precisely to minimize vibration and bearing load. All connections must be secure, and the unit must be lubricated before start-up. Following the manufacturer's installation manual is absolutely critical for ensuring optimal performance and warranty compliance. For anyone seeking right-angle reducer maintenance tips, the mantra is consistency: consistent checks, consistent use of the right lubricants, and consistent attention to unusual sounds or temperatures.

Cost Considerations and Sourcing Factors

The acquisition cost of a right-angle gearbox reducer is just one part of the total cost of ownership. While initial price is always a consideration, it should be weighed against factors like expected lifespan, maintenance requirements, and energy efficiency. A cheaper, low-quality reducer may have a higher failure rate, leading to more frequent replacements and costly production downtime, ultimately making it more expensive than a premium, reliable model. Energy consumption is another major factor. A more efficient bevel gear reducer, for example, will consume less electricity over its lifetime than a less efficient worm gear reducer performing the same task, which can result in significant energy cost savings.

When sourcing, it's vital to consider the manufacturer's reputation for quality, the availability of technical support, and the lead times for both the initial order and any potential replacement parts. Standardization within a facility can also reduce costs by minimizing the number of different spare parts that need to be stocked. Key questions to ask include the reducer's service factor (a rating of its ability to handle overloads), the warranty terms, and the availability of customization options if standard models do not meet your specific requirements. Understanding the cost of right-angle speed reducers involves this holistic view, balancing upfront investment with long-term operational reliability and efficiency.
